Products Details

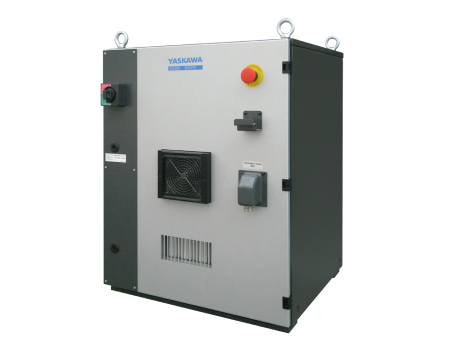

Technical Specifications DX200

Controllers

Manipulator Model-Large Models
MC2000II, MPL80II, MPL100II
Manipulator Model-Painting Models
MPX1150, MPX1950, MPX2600, MPX3500, MHP45L, MP010
Dimensions (W x D x H)-Large Models
600 x 520 x 730mm
Dimensions (W x D x H)-Painting Models
With built-in transformer: 600 x 520 x 1340mm
Approx. Mass-Large Models
100kg
Approx. Mass-Painting Models
Without transformer: 150kg With built-in transformer: 250kg
IEC Protection Class
IP54

Programming Pendant

Dimensions (W x D x H)
Standard pendant
169 x 50 x 314.5mm
Intrinsically safe pendant
235 x 78 x 203mm
Approx. Mass
Standard endant
0.990kg
Intrinsically safe pendant
1.30kg
IEC Protection Class
Standard pendant
IP65
Intrinsically safe pendant
IP54
External Interface
CF slot (1 slot), USB Port (USB1.1, 1 port)

Software

Number of Controlled Manipulators
Up to 8 manipulators
Number of Controlled Axes
Up to 72 axes
Number of Simultaneous JOBs – Large Models
16 JOBs
Number of Simultaneous JOBs – Painting Models
18 JOBs
Number of Controlled Groups
Up to 32 groups
Robot
Up to 8 groups (R1 to R8)
Base
Up to 8 groups (B1 to B8)
Station
Up to 24 groups (S1 to S24)
Programming Capacity
JOB: 200,000 steps, 10,000 instructions
CIO Ladder
20,000 steps (max.)
I/O
System Input: 4096 (max.) System Output: 4096 (max.)
Max. Lenght of JOB Name
Up to 32 digits
DOWNLOAD DATASHEET
