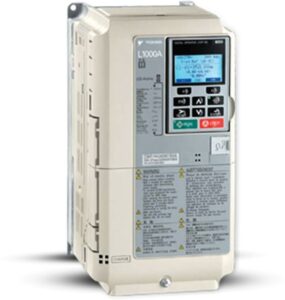

Yaskawa has proven success of manufacturing and supplying drives to the elevator industry: an installed base of over 1,000,000 elevator drives installed and operational. The L1000A Drive Series is a dedicated drive for elevator applications suitable for both modernization projects and new installations. The drive is designed for 3 Million starts at 165% output current It provides advanced control functions to run induction and PM motor applications in geared or gearless elevator systems
Key Features
Single drive for either IM or PM motor control
Peak current ratings of 200% or more based on NEC amps
Auto-tuning routines optimally match L1000A to IM/PM motors (coupled or uncoupled) with closed brake
YASKAWA Quality - designed for more than 70,000 hours of maintenance-free operation
Designed for extreme quiet motor operation
Enhanced features for highest passenger comfort (i.e., torque ripple suppression)
Additional functions to reduce floor-to-floor times
Powerful keypad and I/O interface to simplify elevator controller integration
Easy serviceability and maintainability with lifetime monitors and removable terminals with parameter backup
Elevator terminology for ease of operation
Rescue operation control flexibility
Reduce system cost with TÜV compliant functional safety
New sensor-less torque compensation function including anti-rollback function, preventing shock and ensures a smooth start.
New torque ripple suppression function for smooth start/stop and comfortable acceleration and deceleration characteristics.
Overshoot and anti-vibration control including feed forward function, acc/dec compensation and 5 independent S-curve settings which ensure a perfectly smooth ride
UPS and light-load direction search function provide reliable rescue operation.
One motor contactor solution in compliance with EN81-1
Application / Industry
Elevators – For Geared & Gearless technology
