Compact, High-Performance, Energy-Saving, and User Friendly, delivers outstanding value. In 1996, Yaskawa introduced Japan ’s first commercially produced medium-voltage drives with multiple outputs connected in series and continues the development of energy-saving and high-reliability technologies until today.
Yaskawa has led the industry in the field of low-voltage drives since our launch of the world’s first transistor drive in 1974 by coming up with a series of groundbreaking technologies. Now we are introducing completely new medium-voltage drives to our lineup, following the concept of amalgamating a medium-voltage drive.

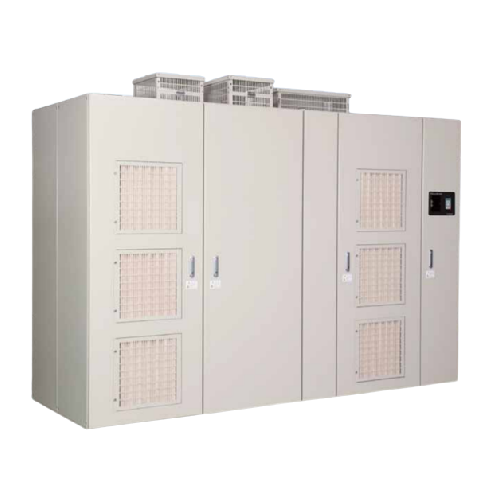

These new drives comply with the main global standards and help energy-saving all over the world. Like a four-leaf clover that brings good luck, the FSDrive-MV1000 offers the four benefits of compactness, high performance, energy savings, and user-friendliness.
Great things come in small packages!
Key Features
Compact design which produces a very competitive footprint across the entire power range in a NEMA enclosure (filtered and gasketed).
Using the Yaskawa Smart Harmonics ™ Technology ensures very low THD, without the need for additional filters
Unique output stage using an enhanced Cascaded H-Bridge configuration reduces the number of power cells by half, providing a very clean output waveform to the motor.
Advanced control features providing high performance including Open Loop Vector Control and excellent Energy Saving capabilities
Digital Operator with an easy-to-view LCD display (same as used on the A1000 series LV drives)
Communication options for all major industrial networks provide high-speed control and monitoring, reducing installation cost
DriveWizard™ plus MV computer software and Application Sets for easy configuration USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
High-quality design, with an expected field MTBF greater than 200,000 Hours (22.8 years)
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
