For HVAC & R - Heating, Ventilation, Airconditioning & Refrigeration
480V class: 1.5 to 160kW

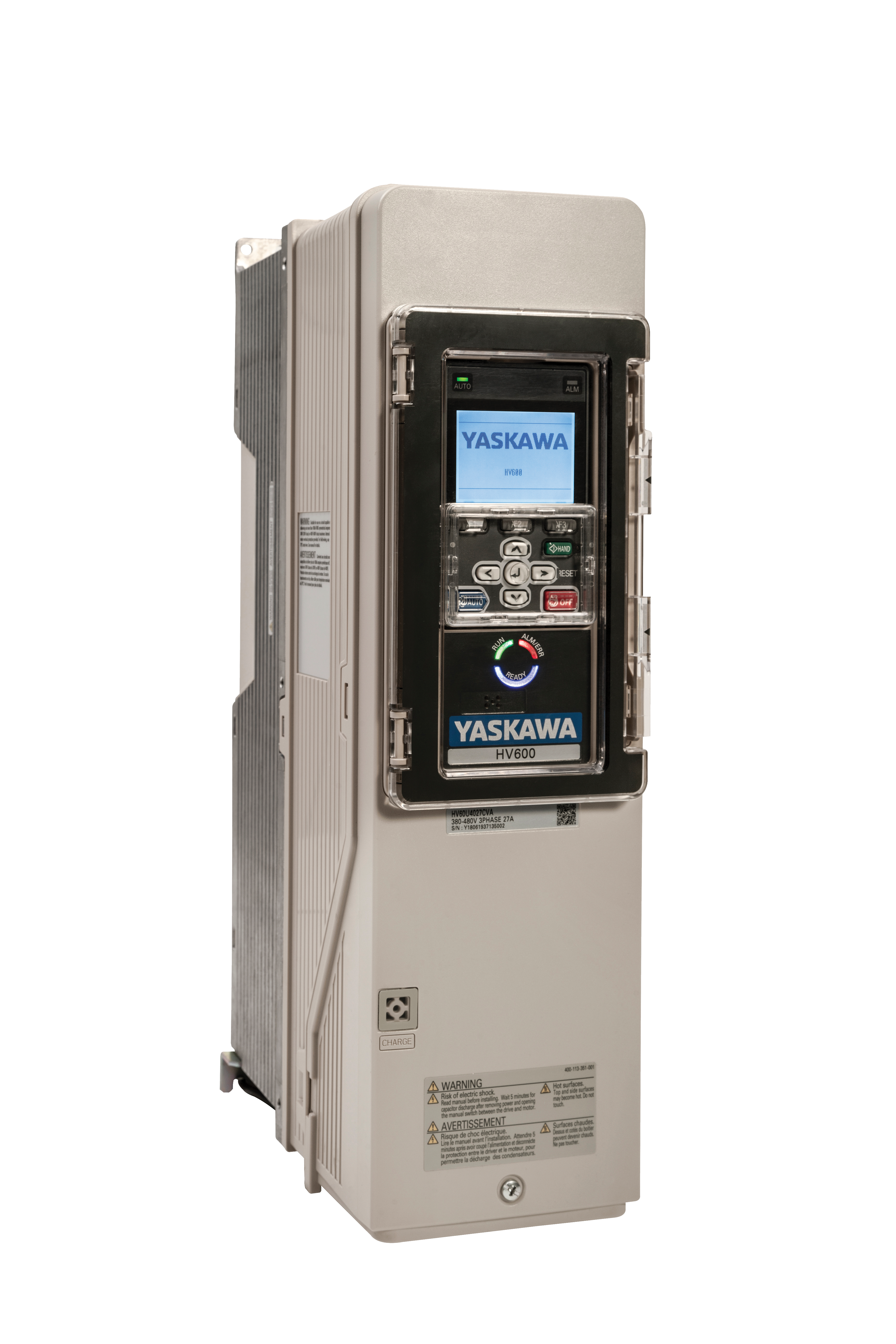

The HV600 variable-speed drive is engineered for use in HVAC building automation applications requiring reliable motor control. The HV600 features your choice of IP20/UL, IP55/UL, or IP20/Protected Chassis protection classes. Every HV600 comes with HVAC application-specific software that presets a Hand-Off-Auto LCD keypad, a high-visibility Status Ring for quick visual indication of drive status, and a real-time clock for system accuracy.
Key Features
Quick and Easy Set-Up
Simple steps for efficient commissioning
DriveWizard Mobile app for drive management on smart mobile devices
Safe programming without main three-phase power
Ease of Installation
IP20/UL, IP55/UL, IP20/Protected Chassis
-10°C to +60°C ambient
Side-by-side mounting
Plenum rated
Simple Operation
High visibility Status Ring
Hand-Off-Auto keypad with LCD display and tactile buttons
Timer controls for starting, stopping, and speed changes
Real-time clock for scheduled functions
Designed for Building Automation
Built-in BMS Communication protocol
Compliance with global certifications and standards
Emergency Override for occupant safety in fire events
Building-Friendly Operation
Built-in 5% impedance reactor for harmonic reduction
On board EMC/RFI filter for first environment emissions
Conformal coating for circuit board protection
Application / Industry
Ventilation Fans
Cooling Tower Fan
Secondary Chilled Water/ Primary Chilled Water Pumps
