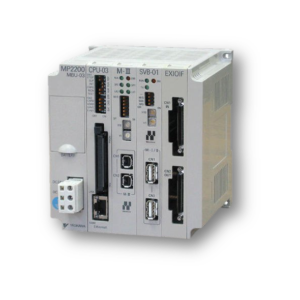

The MP2000 Series Machine Controller has been developed to optimize control of machines. It has surpassed the top achievements of PLCs and user-developed controllers to offer ideal motion control. High speed processing and network communications are vital to maximizing the output of intricate systems. The high-speed CPU of the MP2000 Series reduces the execution time needed for commands. It is the ideal machine controller for large-scale systems requiring sophisticated multi-axis controls and reduction of tact time
Key Features
Synchronous control of up to 256 axes.
As many as 35 slots can be added for option modules.
Fastest transmission cycle: 125 s (4 stations).
Slots for optional modules allow the expansion of I/Os and network systems.
Program applications for the MP2000 series can be converted and used with the MP3000 series.
Board Type, Module type and Compact Type Machine Controller options available
Built-In Ethernet × 1 port: 100 Mbps
Backup/restore of project files, data logging, import/export of register data.
Basic motions, such as rapid traverse positioning, linear interpolation, and circular interpolation, can be easily programmed.
Switching between four control modes i.e. Synchronous Phase Control, Torque Control, Speed Control and Position Control.
MPE720 Ver. 7 engineering tool integrates the engineering environments for servo, inverter, and I/O devices into a single software package. This enables all-in-one engineering from setup to maintenance of drive units connected to an MP2000 series machine controller via the MECHATROLINK network.
