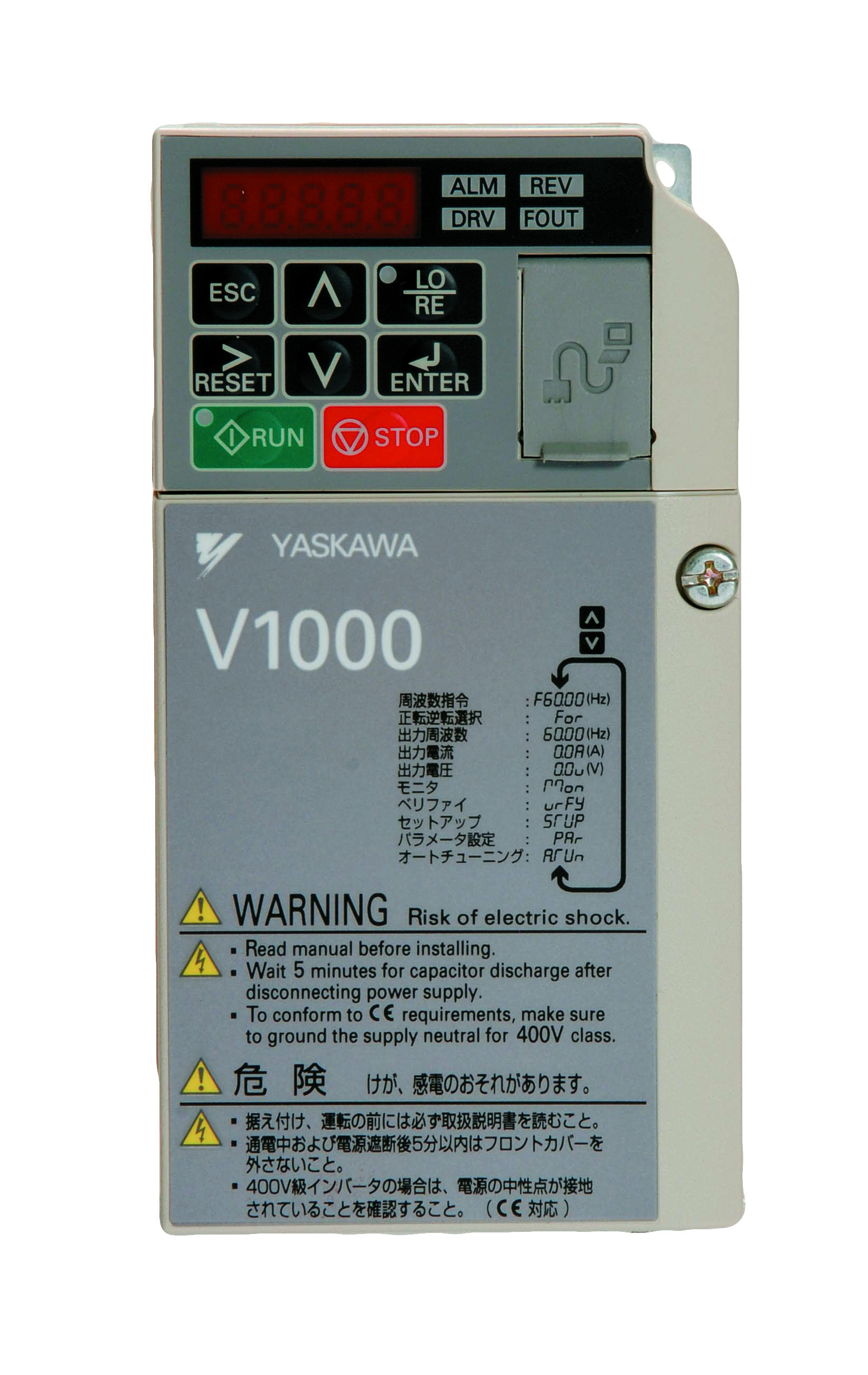

The V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa pays off the promise of being in control with products that make businesses move. The optimum balance of energy input, product output, maintenance risk, and long life is reached with Yaskawa. The V1000 provides a world of power in the palm of your hand!
Key Features
up to 30% smaller than the competition
Current vector control, open loop
RoHS compliance
On-line tuning
Induction motor (IM) or permanent magnet motor (PM) operation
Function Block Diagram (FBD) programming via DriveWorksEZ™
Side-by-side installation due to patented hybrid heatsink
Removable terminal block with parameter backup function
One-touch copy function with verify
Super-fast 2 ms scan cycle with dual CPU
EN954-1 Safety Cat. 3, Stop Cat. 0
Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
1 in 10,000 failure rate
Swing PWM function to decrease noise at low carrier frequencies
Pre-maintenance function
Modbus communication
Cooling fan replacement without tools
MTBF: 28 years Short Circuit Current Rating (SCCR): 30kA rms symmetrical
