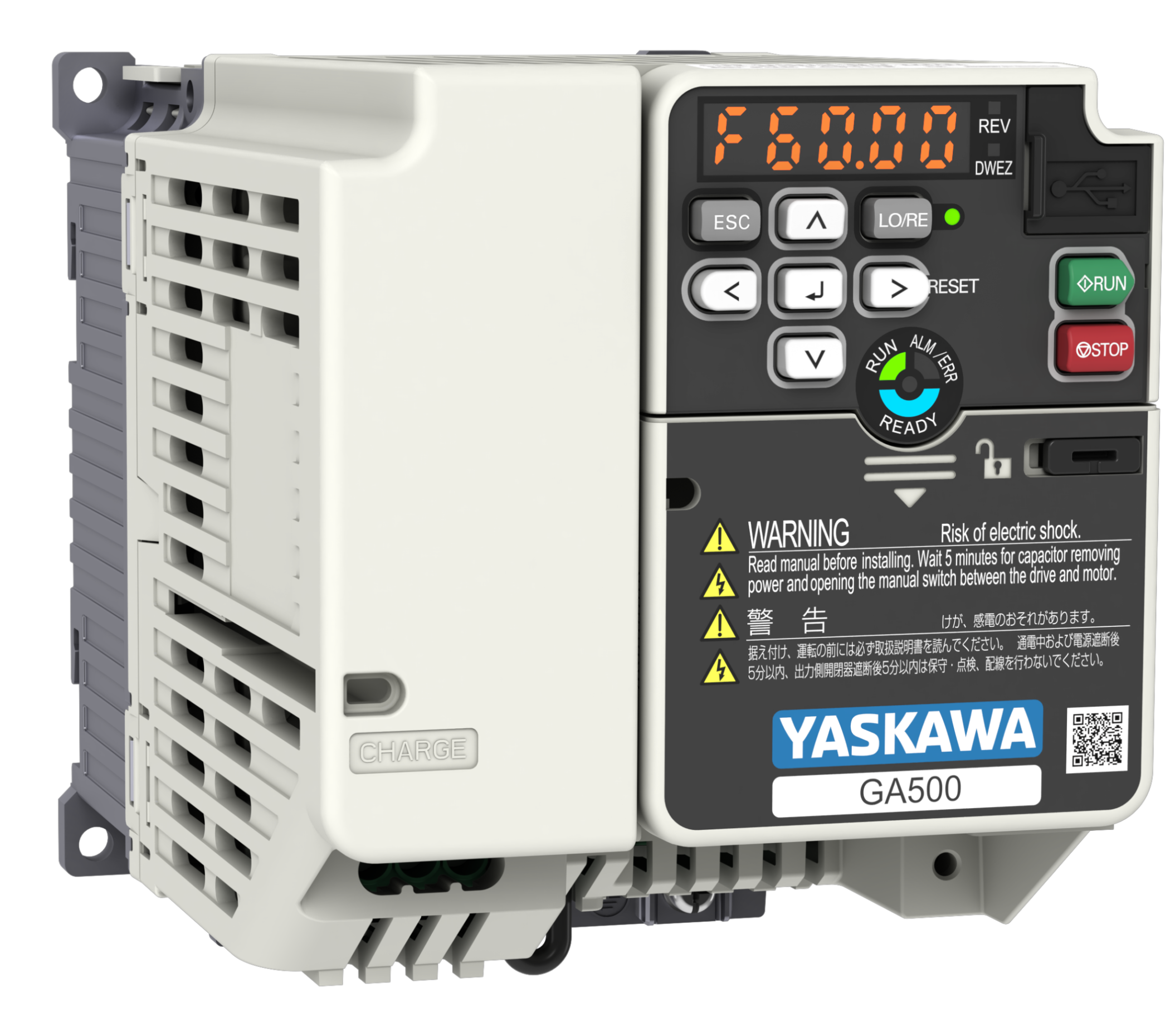

GA500 – The World’s Smallest Class Top Performance Drive For HVAC, Refrigeration & Water Applications Drives controlling comfort throughout a facility presents unique challenges.
Make your complicated day simple by using Yaskawa variable frequency drives for reliable, consistent performance. Whether you are looking at a new project or a retrofit, consider Yaskawa drives. Our drives are designed specifically for your HVAC applications and deliver simplicity, and efficiency, at all loads to meet your specific needs.
Key Features
No power programming
Intuitive keypad
Conformal coated (IEC 60721-3-3: 3C2, 3S2)
Current vector control, open loop
Induction motor (IM), permanent magnet motor (PM), or synchronous reluctance motor operation
SIL3 (IEC 62061), PLe (ISO 13849-1) safety ratings
Embedded Modbus communication
Wide variety of communication options
Variety of mounting methods (standard, IP20/UL, side-by-side, external heatsink, DIN rail)
Embedded 24 Vdc power supply
Maintenance monitors
Cooling fan replacement without tools
Optional LCD or Bluetooth keypad
Global certifications (CE, UL, cUL, TUV, RCM)
MTBF: 28 years
Up to 30% smaller than the competition
Short Circuit Current Rating (SCCR): 31 kA rms symmetrical
Common programming with all other Yaskawa drives
DriveWizard Industrial software for parameter management and start-up
DriveWizard Mobile application for smartphones and tablets
Function Block Diagram (FBD) programming via DriveWorksEZ™
