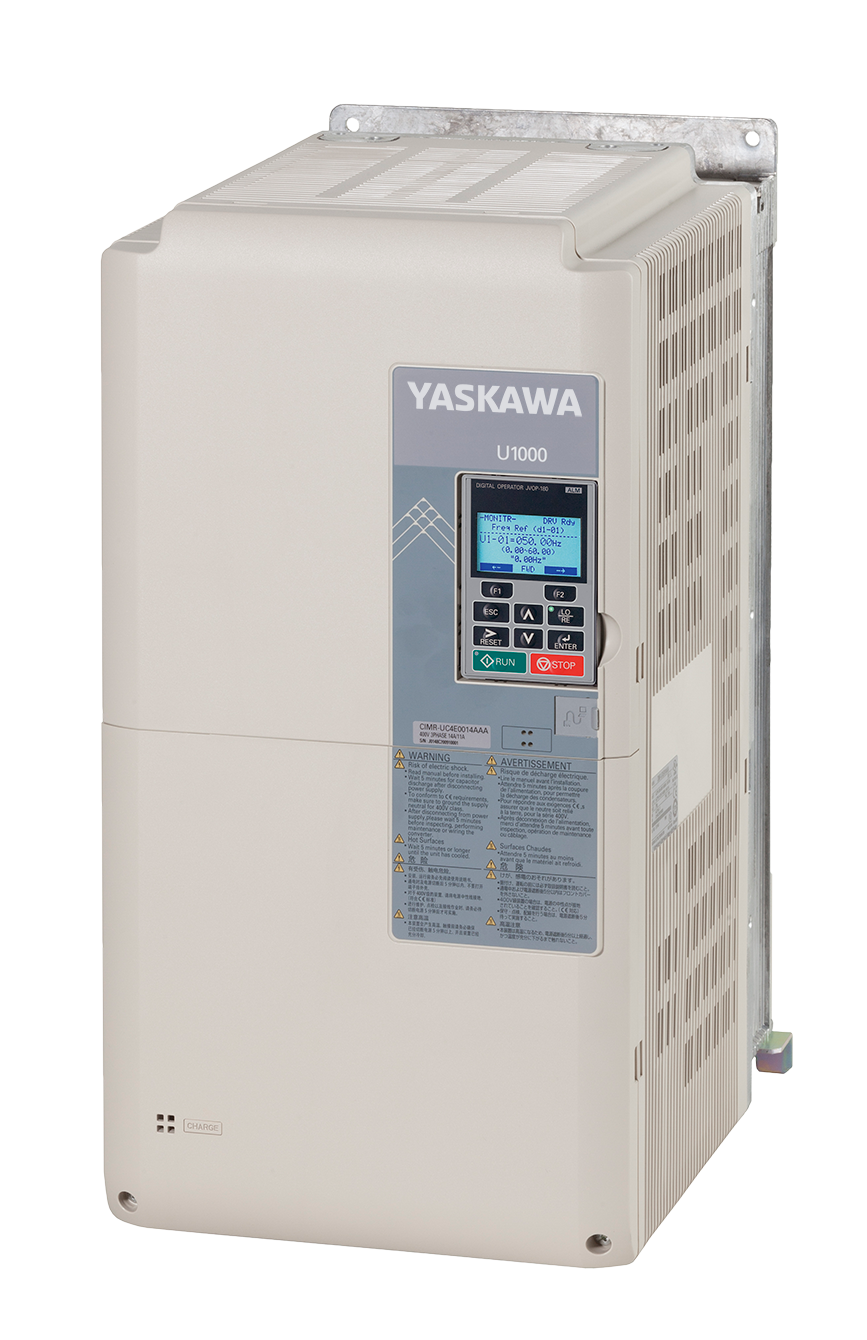

The U1000 is a highly efficient AC drive based on Yaskawa matrix technology. With full power regeneration capability, the U1000 offers great energy-saving potential while sinusoidal input currents and a near unity power factor reduce stress on grid components like transformers and power lines. With a compact footprint, the U1000 is the first choice for innovative, energy-efficient drive solutions with or without power regeneration.
Key Features
Full Regeneration
Low Input Distortion Across a Wide Load and Speed Range
Facilitate IEEE 519 Compliance
Eco-Mode to Achieve Near Across-the-Line THD
High-Efficiency Design Provides Extra Energy Savings as Compared to Other Low Harmonic Solutions
Near Unity True Power Factor at Full Load
Integrated Input Fusing Provides 100kA SCCR
Compact Design
High Reliability with an MTBF of 28 Years
Embedded Modbus RTU Communications
Removable Terminal Block
High Carrier Frequency (Low Motor Noise) Capability
0-400 Hz Output Frequency
120% Overload for 60 Seconds (ND)
150% Overload for 60 Seconds (HD)
Multi-language LCD Display with Copy function
Start into Spinning Load (Speed Search)
Both Induction and Permanent Magnet Motor Control
Closed or open loop vector control for outstanding regulation, torque production, and position control capability
Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature
High-Frequency Injection enables high-precision open loop control of Interior Permanent Magnet Motors
Fast-acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand
Communication options for all major industrial networks provide high-speed control and monitoring, reducing installation cost
DriveWizard Plus computer software and Application Sets for easy configuration
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3)
Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
